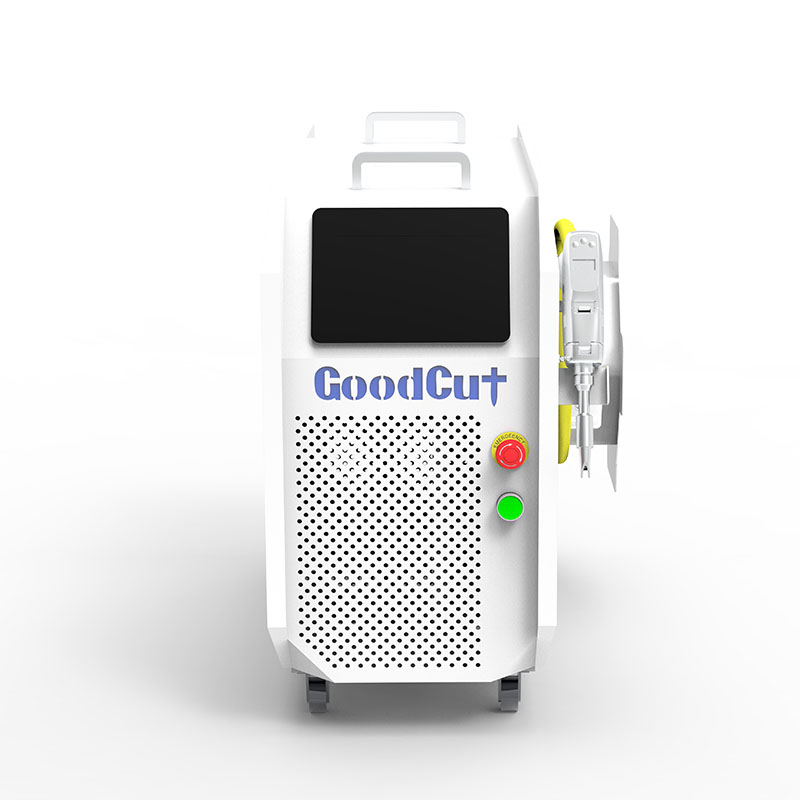

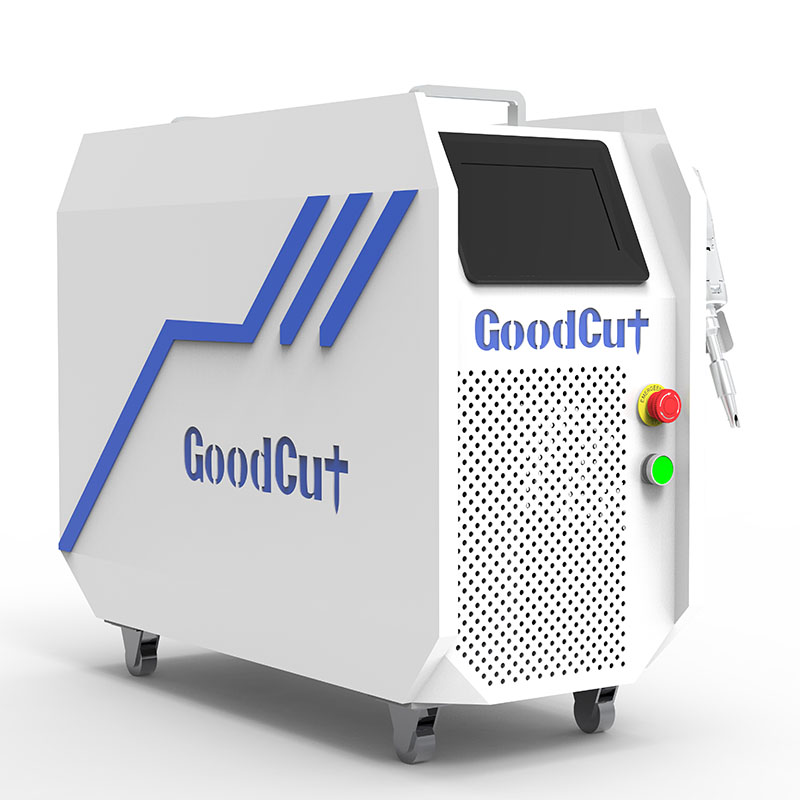

GoodCut GC-WCC Air Cooling Fiber Laser Welding Machine Mini Size Handheld for Metal Aluminum Iron
GoodCut GC-WCC Air Cooling Fiber Laser Welding Machine Mini Size Handheld for Metal Aluminum Iron
Parameter:
Configuration of the machine | |
Model | GC-WCC |
Fiber Laser source | 1500W / 2000W / 3000W |
Brand of laser source | Raycus/MAX |
Controller system | AU3TECH |
Welding / Cutting / Cleaning head | AU3TECH |
Wire feeder | AU3TECH |
| Functions | welding + cleaning + cutting + cleaning welds + New energy welding (Welded lithium batteries, copper and aluminum) |
Laser wavelength | 1064nm |
Weling min molten pool | 0.1mm |
Welding depth | ≤3mm |
Spot size adjustable range | 0.3-3.0mm |
Workbench repeatability | ±15kw |
Viewing system | Red light positioning |
Cooling | Air cooling |
Operating Temperature | 0-45℃ |
Operating humidity | 5%-95% |
Graphic Format Supported | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
Net Weight | 80KG |
Warranty | Two years |
Voltage | AC220V/380V±10% / 50/60Hz/60A |
Machine Size | 600*350*450mm |
Feature:
1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small.
2. Through control the laser energy, the welding will not defrom or very few deformation.
3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.
4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.
5. Long life span up to 100,000 hours and low comsumption.
6. the Auto wire feeding handheld welding machine can weld parts with wider gap.
7. With a 8-15m fiber line, It can weld long-distance and large- area parts.
8. Various welding processes, such as spot welding, seam welding and overlap welding.
9. The welding efficiency is around 5 times of TIG welding.
10. It is welding used in electronics, sheet metal, air condiction industry etc.
Application:
1. Material
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.
2. Welding，Cleaning，Cutting
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
