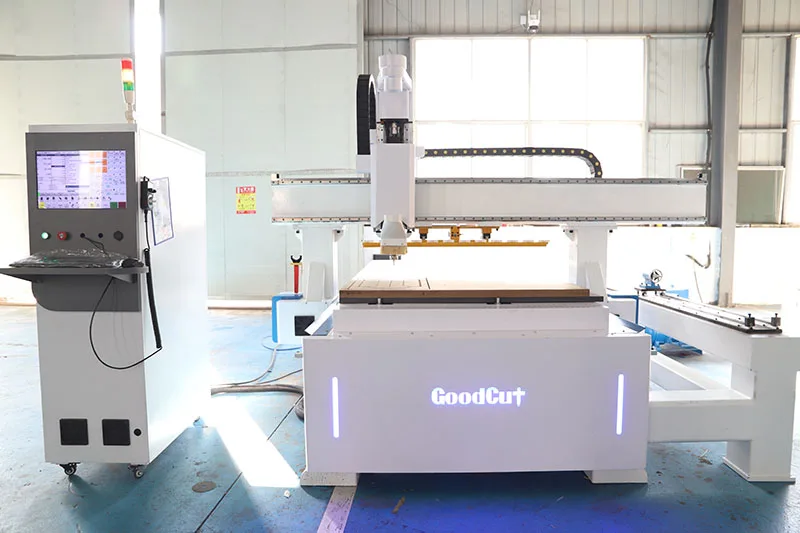

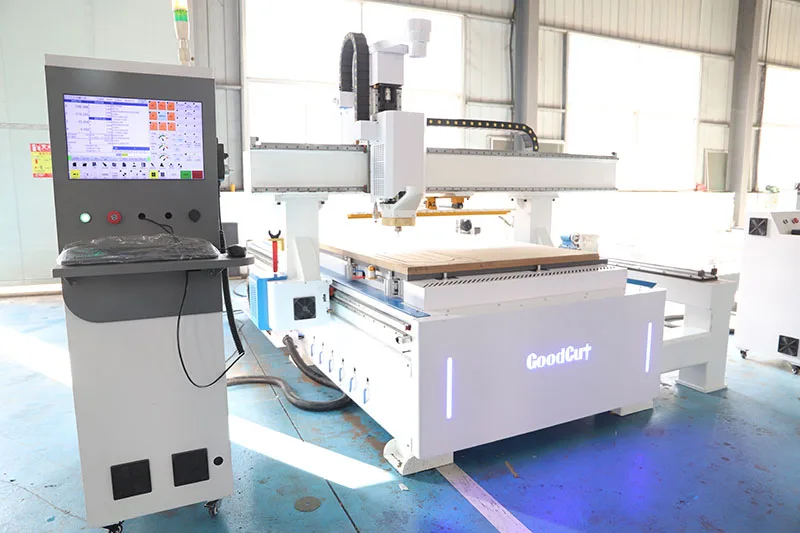

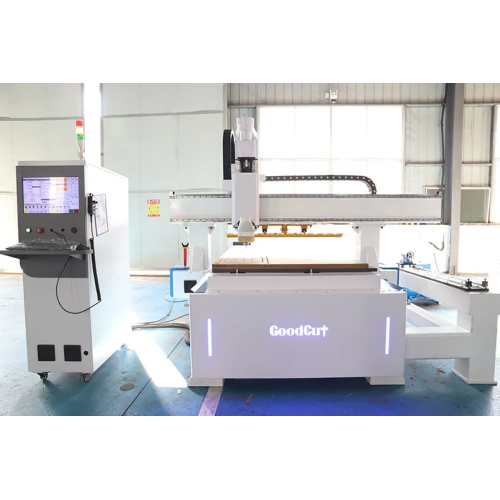

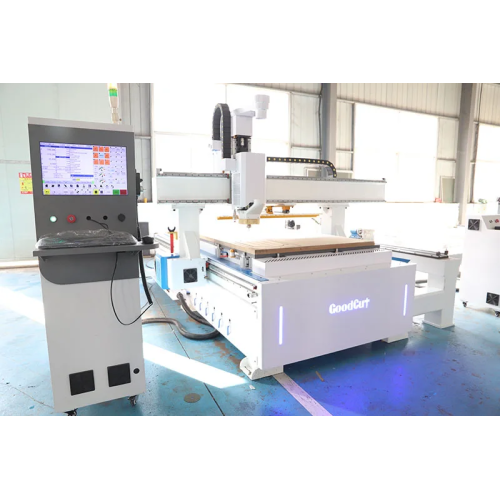

GoodCut GC1325ATC-R CNC Router with Side Rotary Woodworking Furniture Engraving Cylinder-shaped Material Carving
GoodCut GC1325ATC-R CNC Router with Side Rotary Woodworking Furniture Engraving Cylinder-shaped Material Carving
X, Y, Z effective working area | 1300*2500mm / 1500*3000mm / 2000*3000mm (optional) |
Tool magazine | 12pcs linear tool change magazine |
Rotary diameter | 200mm / 300mm / 400mm diameter |
Spindle | HQD / Italy HSD 9kw air cooling spindle |
Inverter | Fuling / Delta |
Motor and driver | Leadshine / Taiwan Delta / Japan Yaskawa servo motor |
Control system | Weihong / Taiwan Syntec / Siemens (optional) |
Table | Vacuum adsorb table with T-slot+7.5kw vacuum pump |
Frame | Heavy duty frame |
Transmission | X Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 20mm guide rails |
Software | Artcam type3 |
9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.
HSD or HQD 9KW(12 HP )
Automatic tool changer

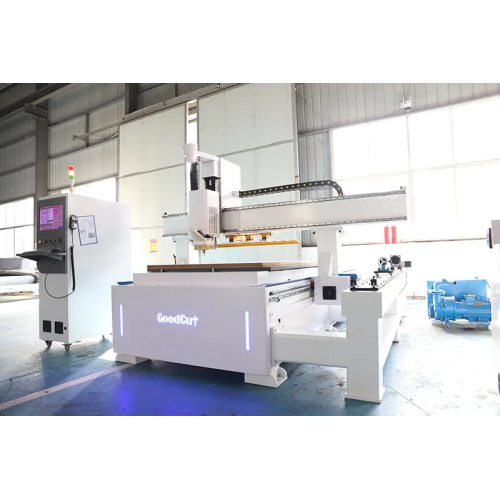

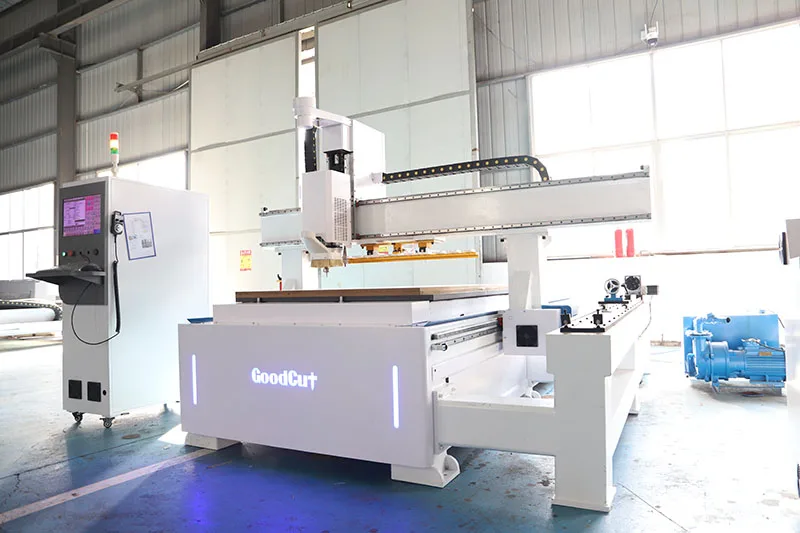

Rotary axis with 100-500mm diameter, can process legs.

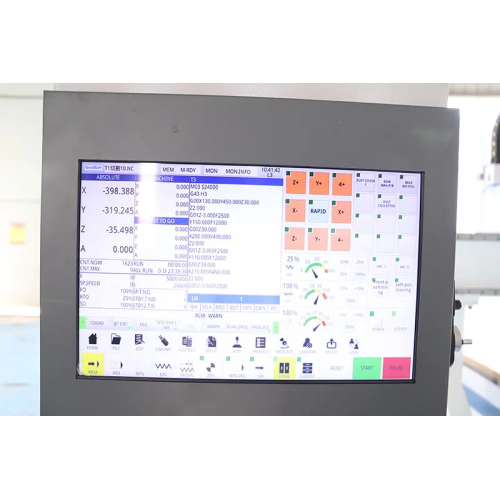

LNC or Syntec controller
Japan Yaskawa servo motor and driver
Maintenance free brushless Japan Yaskawa AC servo motors and drives
