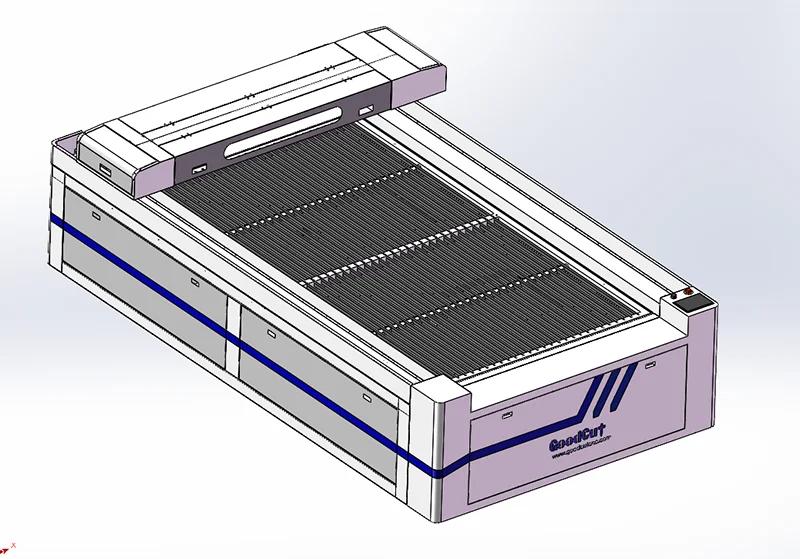

GC1325LM Mixed CO2 Laser Cutting Engraving Machine for 20mm 30mm Acrylic Wood MDF Stone Plastic Glass Steel
GC1325LM Mixed CO2 Laser Cutting Engraving Machine for 20mm 30mm Acrylic Wood MDF Stone Plastic Glass Steel
Main features
1.Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts. Dynamic performance is stable, able to work for long time.
2.Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.
3.Laser cutting head with auto focusing system. Laser cutting head automatically adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handling. Flat and wavy steel sheets can be cut with this machine.
Parameters :
Technical Parameters | |||
Model | GC1325LM | ||
Laser type | Co2 laser | ||
Laser power | 130w/150w /180w/ 200w/ 300w / 500w | ||
Working area | 1300x2500mm (others could be customized) | ||
Max cutting thickness | Depends on laser power and material. | ||
Laser optical component | II-VI lens and mirror (USA) | ||
Laser tube | RECI or EFR glass tube | ||
Drive | Leadshine stepper/ servo motor | ||
Transmission | Hiwin Linear guide rail and belts transmission | ||
Auto focus | Yes (cutting metallic materials) | ||
Fixed laser beam optical path | Yes (5 laser mirrors and 1 lens) | ||
Cooling way for lens & mirror | Air cooling or water cooling (optional) | ||
Camera orientating system | Optional (this function can work in with UV printing machine, working video: https://youtu.be/zcZorfFwTPc) | ||
Resolution ratio | 0.025 mm | ||
Min shaping character | Chinese 2mm / English Letter 1mm | ||
Re-positioning accuracy | +/- 0.01mm | ||
Graphic format supported | DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF | ||
Gross power | <2500w, 220v, 50/60hz | ||
Gross weight | 1100 KG | ||
Machine dimension | 3160*2100*1100mm | ||
Package size | 3710*2260*1290mm | ||
Parts images
Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.
Metal laser Cutting Head
Leadshine servo motor

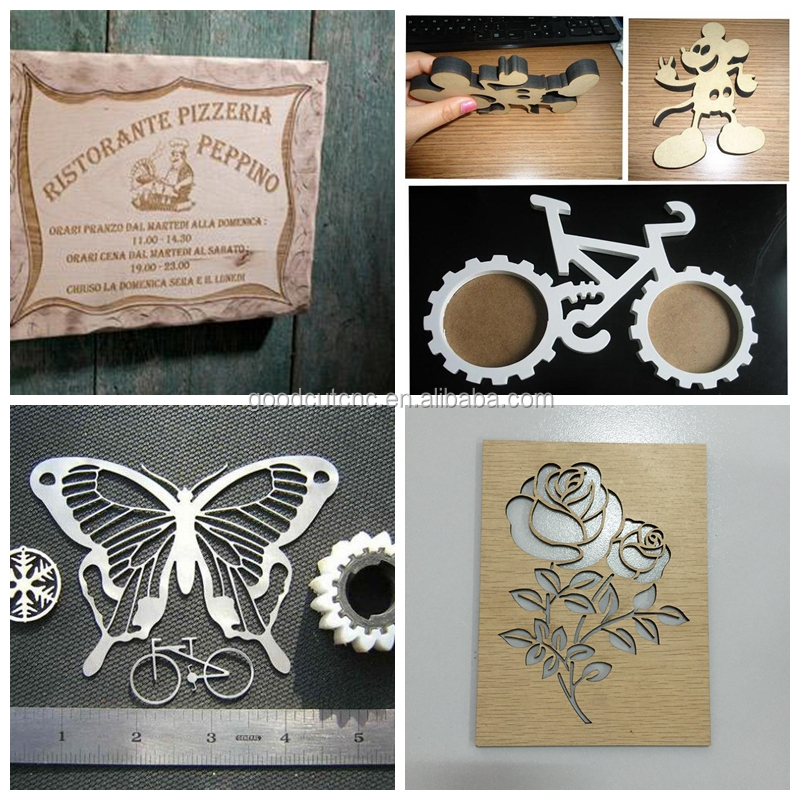

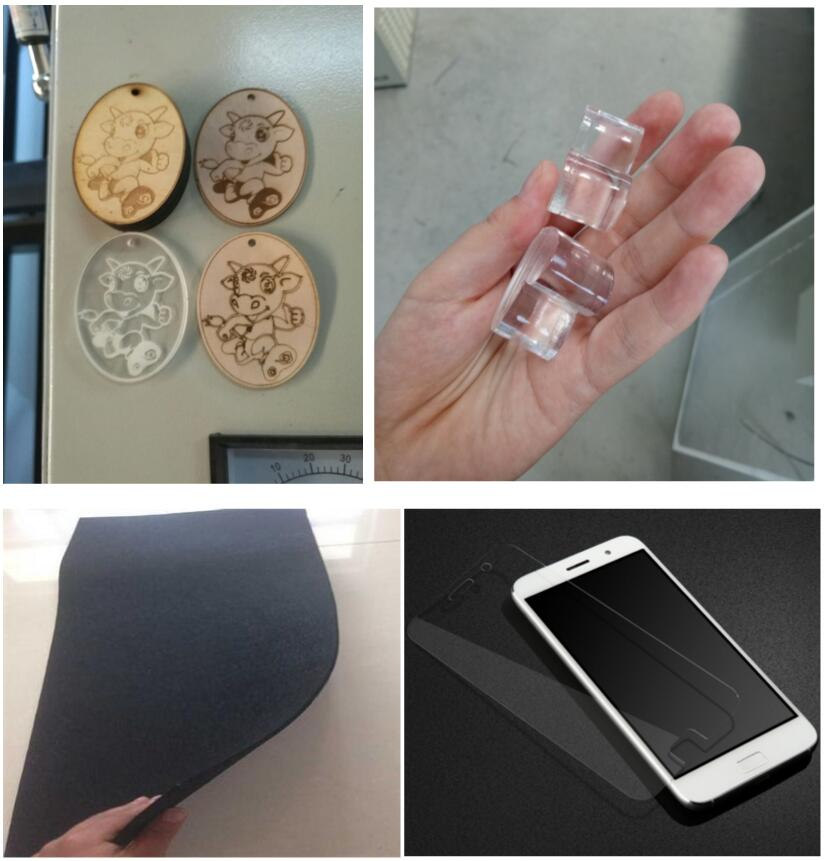

Applicable Materials
Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials

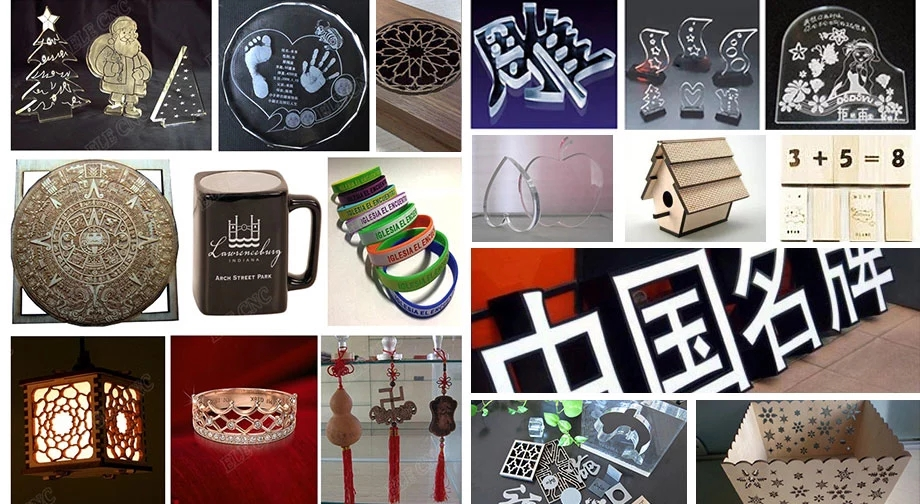

Application Industries
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
