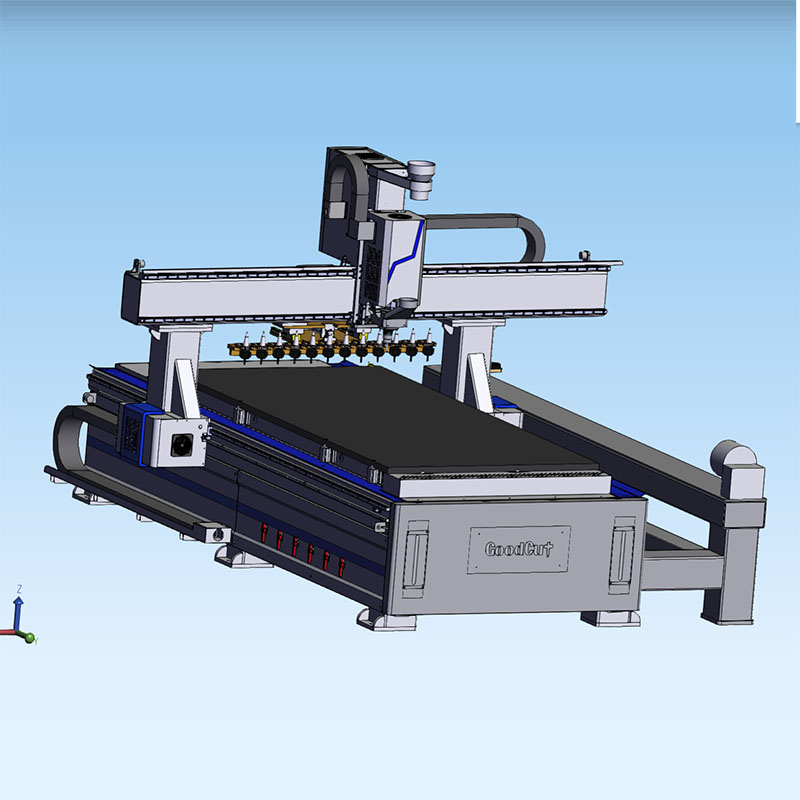

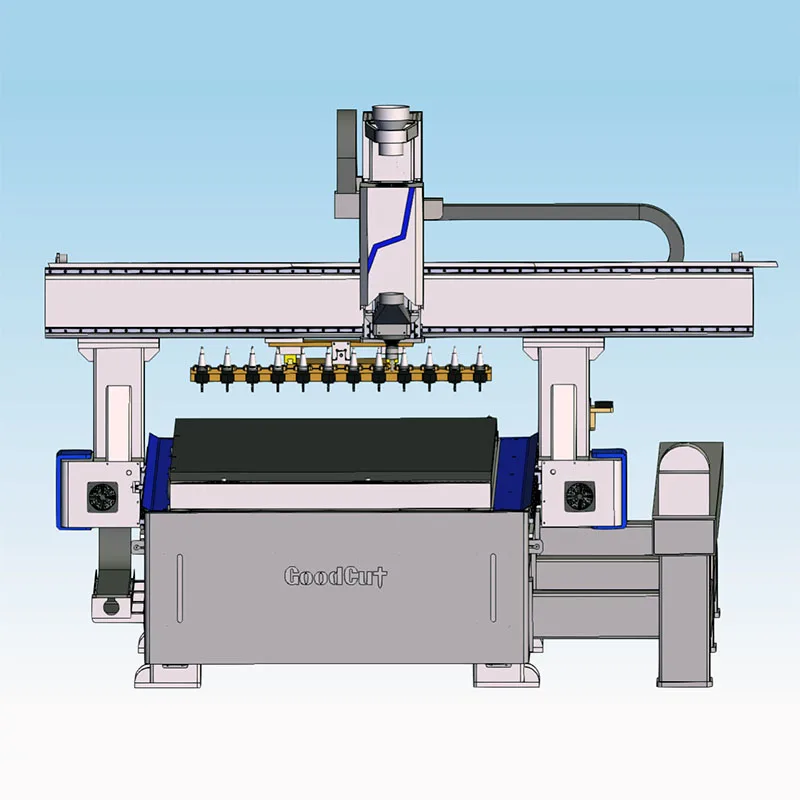

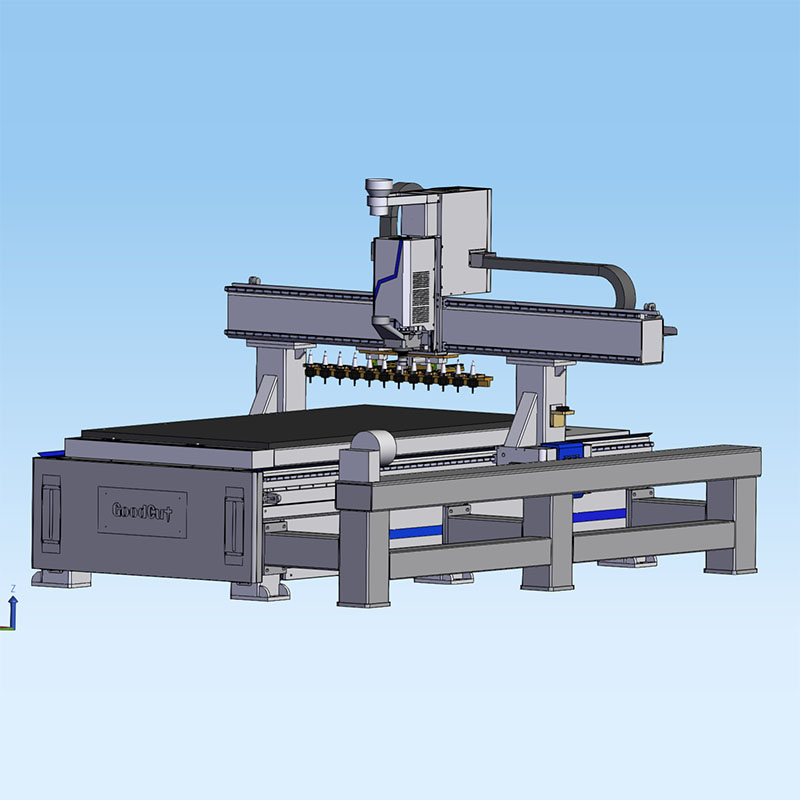

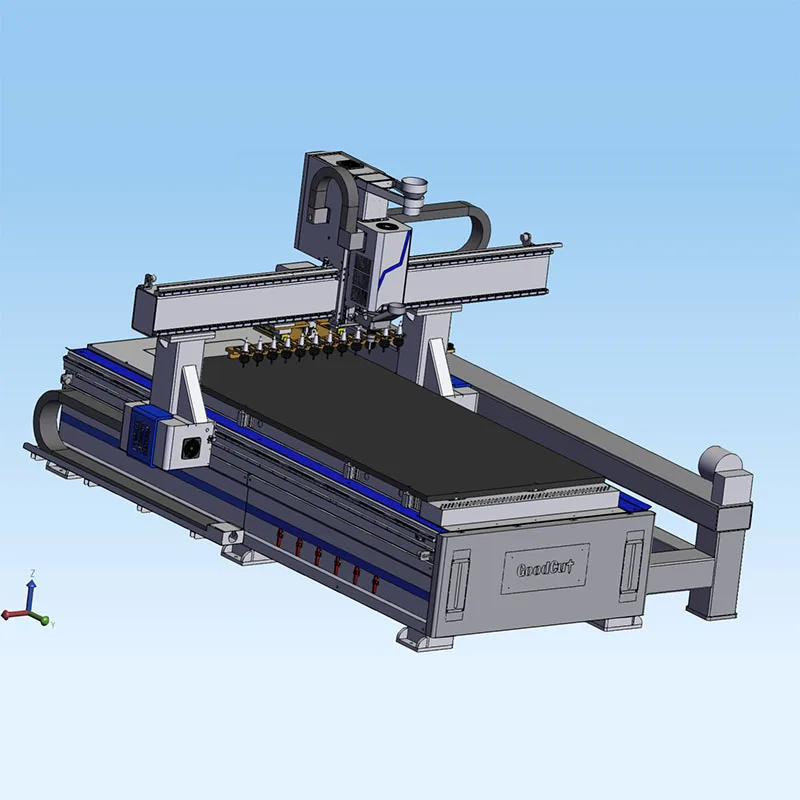

GoodCut GC2040ATC-4Axis CNC Router 180 Degree Rotating Head 400mm Side Rotary for Furniture
GoodCut GC2040ATC-4Axis CNC Router 180 Degree Rotating Head 400mm Side Rotary for Furniture
Parameters:
X, Y, Z effective working area | 1300*2500mm / 1500*3000mm / 2000*4000mm (optional) |
Tool magazine | 12pcs linear tool change magazine |
Rotary diameter | 200mm / 300mm / 400mm diameter |
Spindle | HQD / Italy HSD 9kw air cooling spindle with 180 degree rotating head |
Inverter | Fuling / BEST |
Motor and driver | Taiwan Syntec servo motor driver |
Control system | Taiwan Syntec control system |
Table | Vacuum adsorb table with T-slot+7.5kw vacuum pump |
Frame | Heavy duty frame |
Transmission | X Y Rack gear, Z Taiwan TBI ball screw, Taiwan HINWIN 25mm guide rails |
Software | Artcam type3 |
Working area is2000*4000*400mm, widely used in furniture industry.
HSD or HQD 9KW ATC spindle
180 degree rotating head
Automatic tool changer
12pcs tools magazine
Rotary axis with 100-500mm diameter, can process legs.
Taiwan Syntec controller
Syntec servo motor and driver
Fuling inverter
Vacuum table with Tslot
Feature:
1.Welded pipe steel lathe bed, strong and never out of shape
2. 4 axis cnc router , is specially for 3D work , the A axis can rotate +/- 90 degree
3.The machine's main parts are all from world famous suppliers, such as Syntec control system, Sampo reducer, spindle, Delta inverter and Becker vacuum pump, all components are from global leaders.
4.With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 3D jobs, like special shaped arts, bended doors or cabinets.)
5.Double motors and drivers of Y axis which can ensure steady movement
6.Rack gear transmission ensures fast speed and high accuracy
7.Imported square rail ensures high accuracy and heavy workload
8.It can work on foam, MDF, Acrylic, wood, and the soft metal etc
Application:
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
