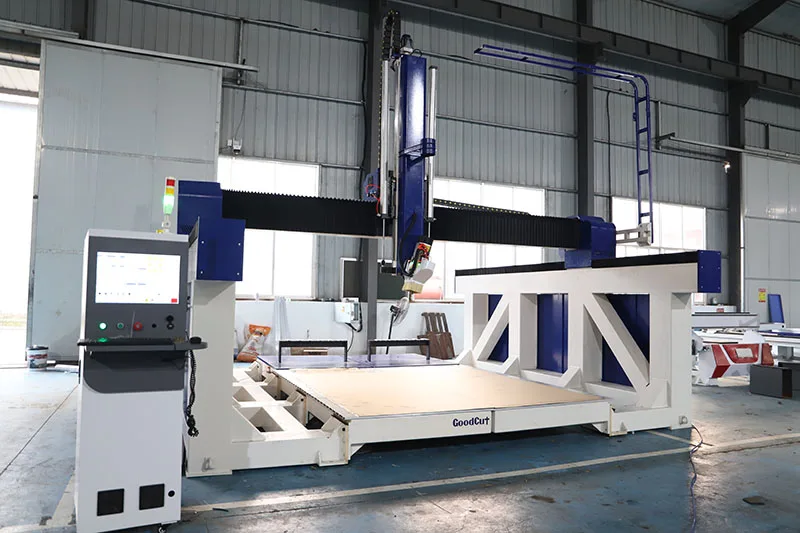

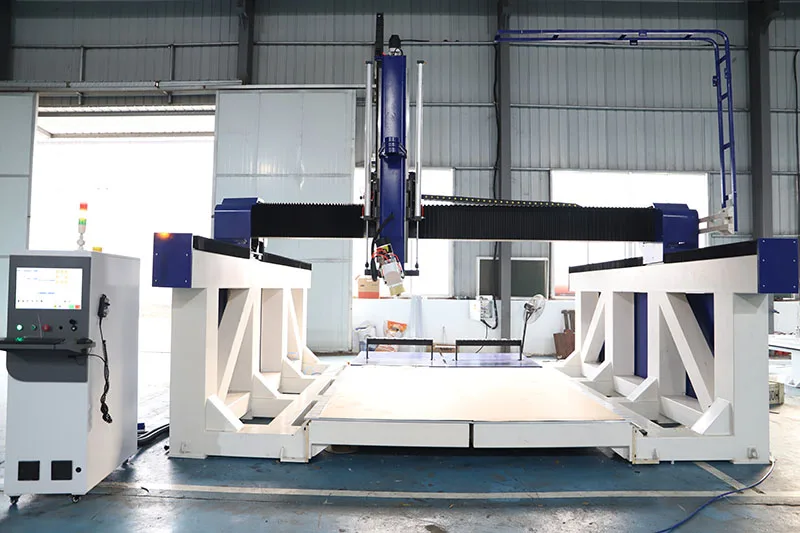

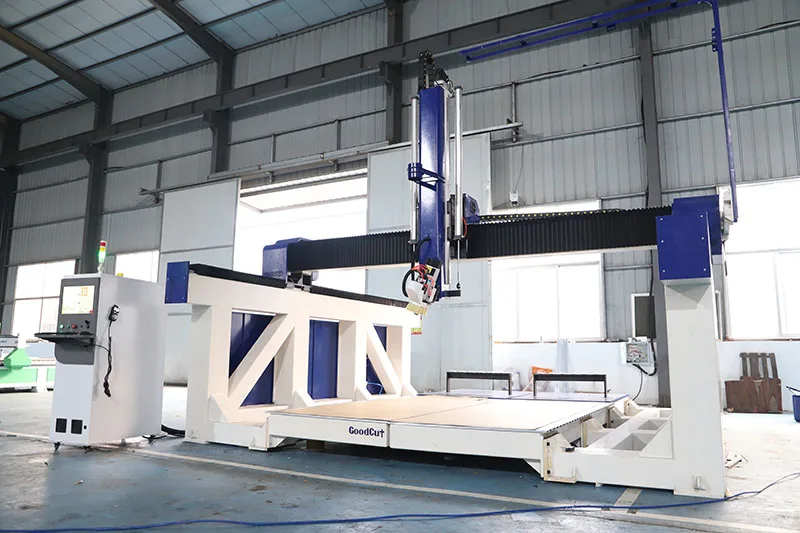

GoodCut GC2530ATC-4Axis Rotating Head CNC Router Foam EPS Wood Aluminum Cutting Engraving Milling Machine
GoodCut GC2530ATC-4Axis Rotating Head CNC Router Foam EPS Wood Aluminum Cutting Engraving Milling Machine
FEATURES
Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.
1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.
2. Equipped with air cooling spindle, it has the features of low noise and easy operation.
3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.
4. Many configurations and service can be available according to your requirement.
PARAMETER
Model | GC2530ATC-4 Axis |
Working size | 2500*3000*1350mm Z-axis with cylinder to ensure no vibration (The machine size is larger than the working size,size can be customized) |
Structure | Heavy duty gantry and structure,12mm thickness steel |
Control system | Taiwan LNC/ SYNTEC control system |
Spindle | 9kw ATC Spindle |
Spindle speed | 0-24000rpm |
Table Surface | Aluminum T Slot Table |
Driving system | Leadshine 1500w / Taiwan SYNTEC 1500w servo motor driver |
Guide rail | Helical rack gear for X, Y axis, Taiwan TBl ball screw for Z travel, HIWIN guide rail 30mm Z-axis TBI ball screw, chrome-plated guide rail 30mm Z-axis 4 guide rails |
| Dust collector | Dust hood for axis,dust collect hood and pipe for dust collector |
Inverter | Fuling/ Delta |
Z axis transmission | Taiwan TBl ball screw with high precision |
Collet | ER32/BT30/BT40 |
Rotary clamp | φ600X2500mm |
Working Voltage | AC380 50HZ/60HZ 3 phase |
Optional | Swing head with 180 degree Rotary device |
APPLICATION
The machine hes been widely used in these industry: Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc. Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.
SAMPLE
