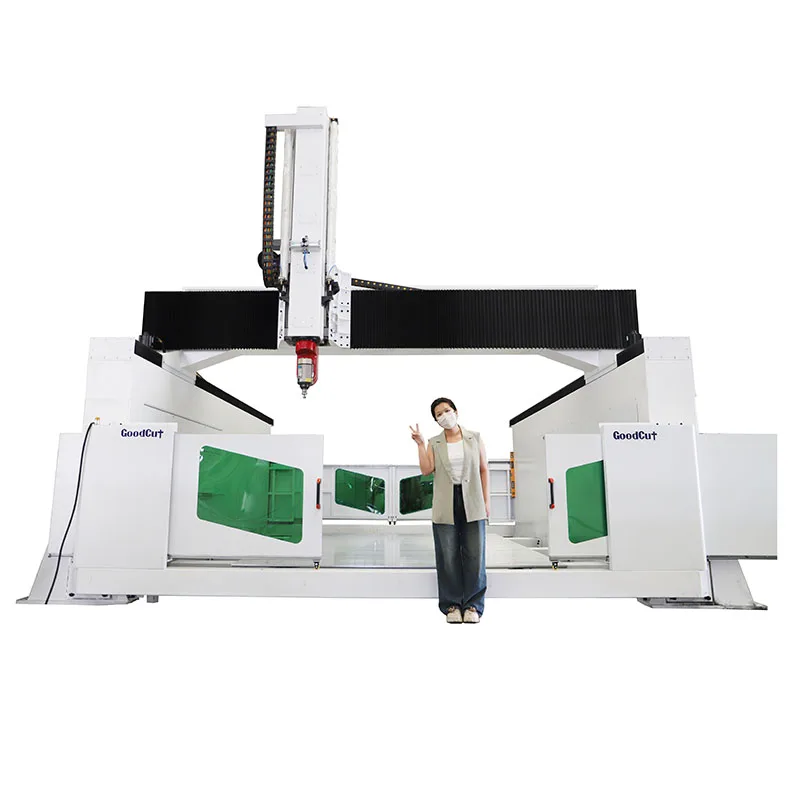

GC-5Axis High-end 5Axis CNC Wood Router Stone Carving Aluminum Milling Machine 360Degree Rotating Head
GC-5Axis High-end 5Axis CNC Wood Router Stone Carving Aluminum Milling Machine 360Degree Rotating Head
Features :
Compared with other foam engraving Machine, this machine's working size is much larger. And The Z axis can be heightened according to your special requirements; and the whole working size also can be customized.
1. With heavy-duty gantry and structure, which can guarantee the machine to be strong, reliable and durable.
2. Equipped with air cooling spindle, it has the features of low noise and easy operation.
3. With imported high-precision ball screw and Taiwan Hiwin linear square rails, which move smoothly to ensure the machining precision.
4. Many configurations and service can be available according to your requirement.
Parameter:
Model | GC - 5 AXIS |
Working size | 1300*2500*1000mm 1500*3000*1000mm 2000*3000*1000mm 2000*4000*1000mm size can be customized |
Structure | Heavy duty gantry and structure |
Control system | Taiwan SYNTEC control system support 5 axis and ATC function |
Spindle | 10kw HITECO spindle etc |
Spindle speed | 0-24000rpm |
Table Surface | T Slot Table |
Driving system | Taiwan SYNTEC servo driver 1.5KW |
Guide rail | Helical rack gear for X, Y axis, Taiwan TBl ball screw for Z travel, Double Taiwan HlWIN #35 Linear guide for Y axis one side,total 4pcs #35 linearguide for Y axis X,Z axis Taiwan HlWIN #35 linear guide |
| Dust collector | Dust hood for axis,dust collect hood and pipe for dust collector |
Inverter | Chinese Best/Fuling/ Delta |
Z axis transmission | Taiwan TBl ball screw with high precision |
Collet | ER32/BT30/BT40 |
Rotary clamp | φ600X2500mm |
Working Voltage | AC380 50HZ/60HZ 3 phase or AC220 50/60HZ single phase |
Optional | Rotary device |
Details:

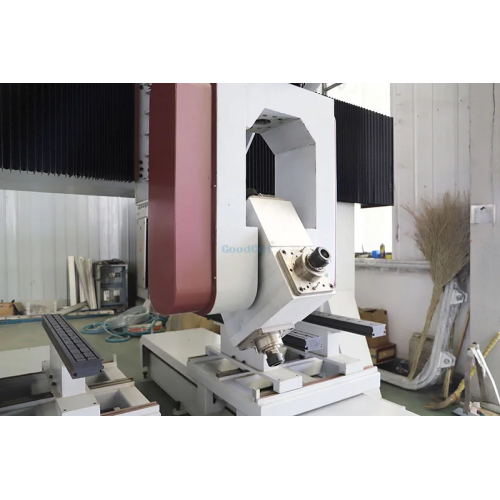

Spindle
10KW hiteco 5axis spindle
Taiwan's Syntec systems
safe and reliable operation, read code speed and efficient, and have online simulation capabilities, online monitoring, to ensure the efficient and safe processing
Japan SHIMPO

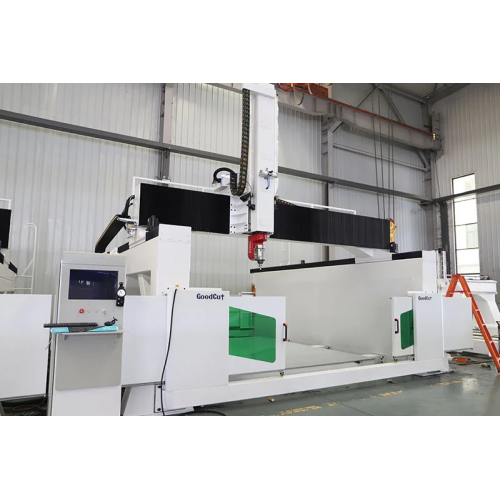

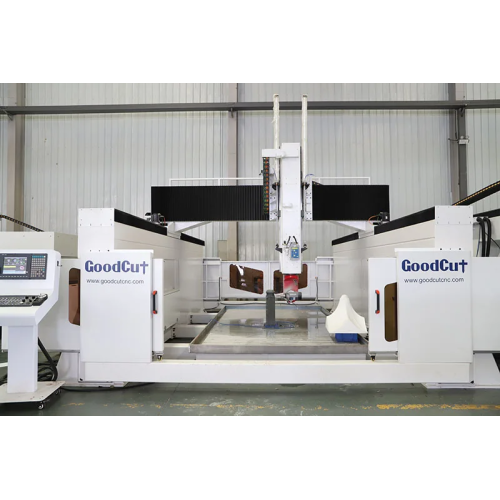

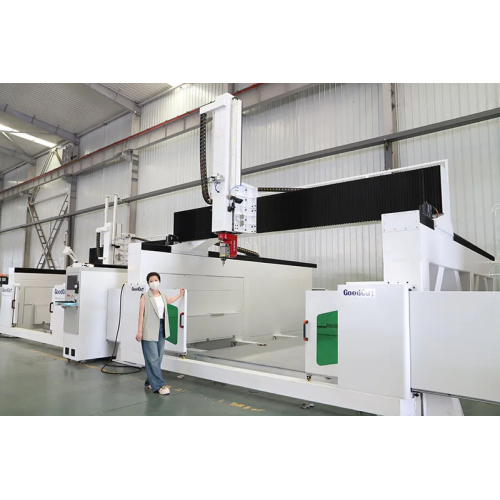

Machine detailed photos:
Application:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

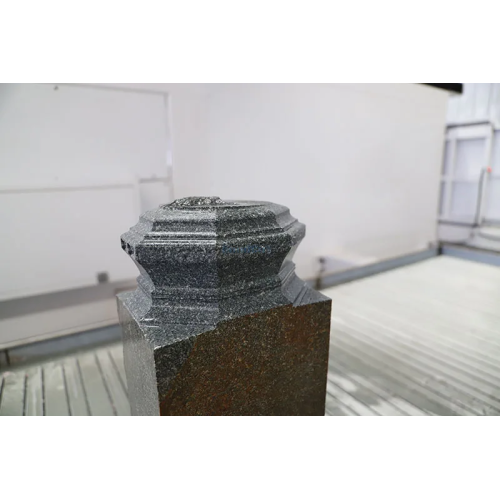

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
